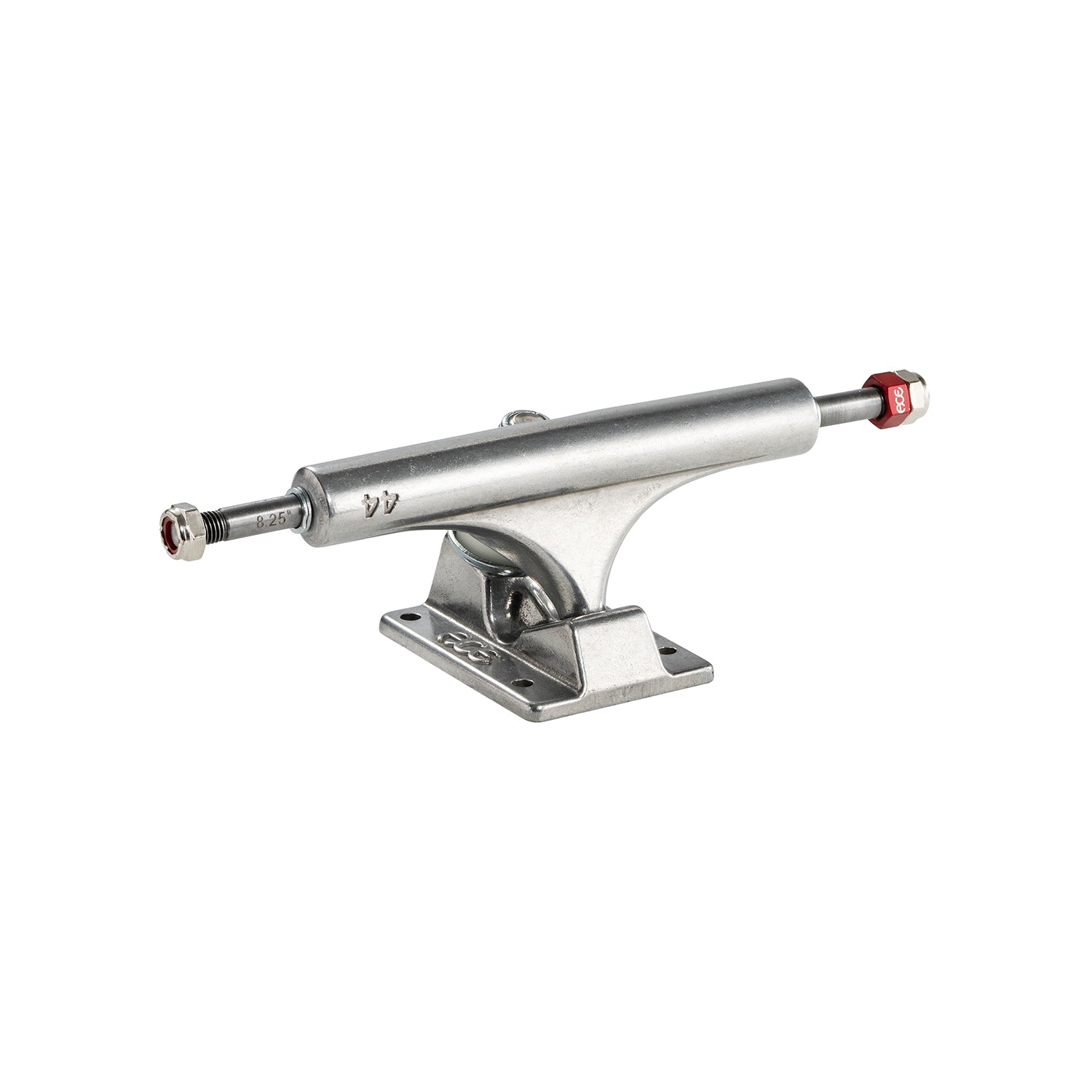

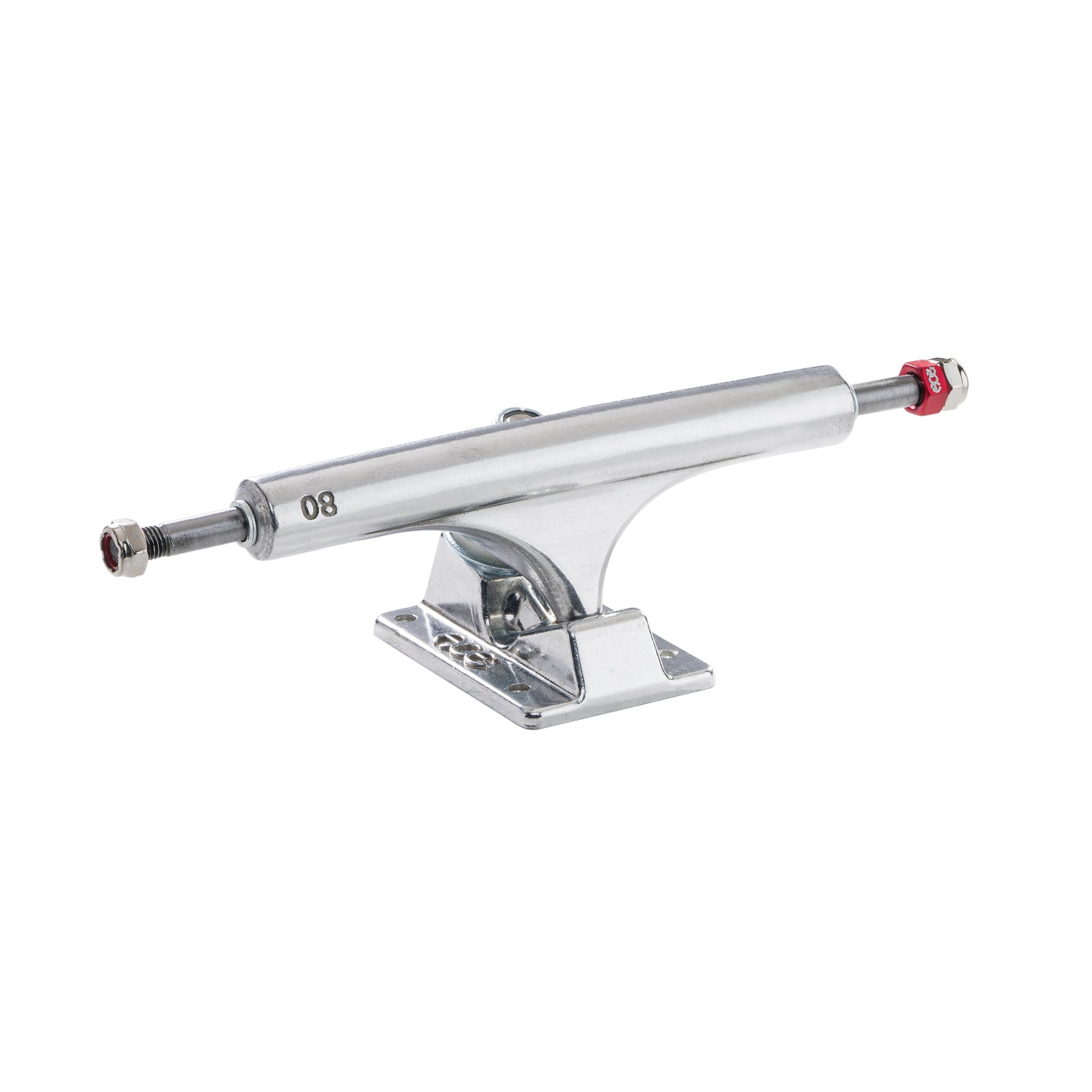

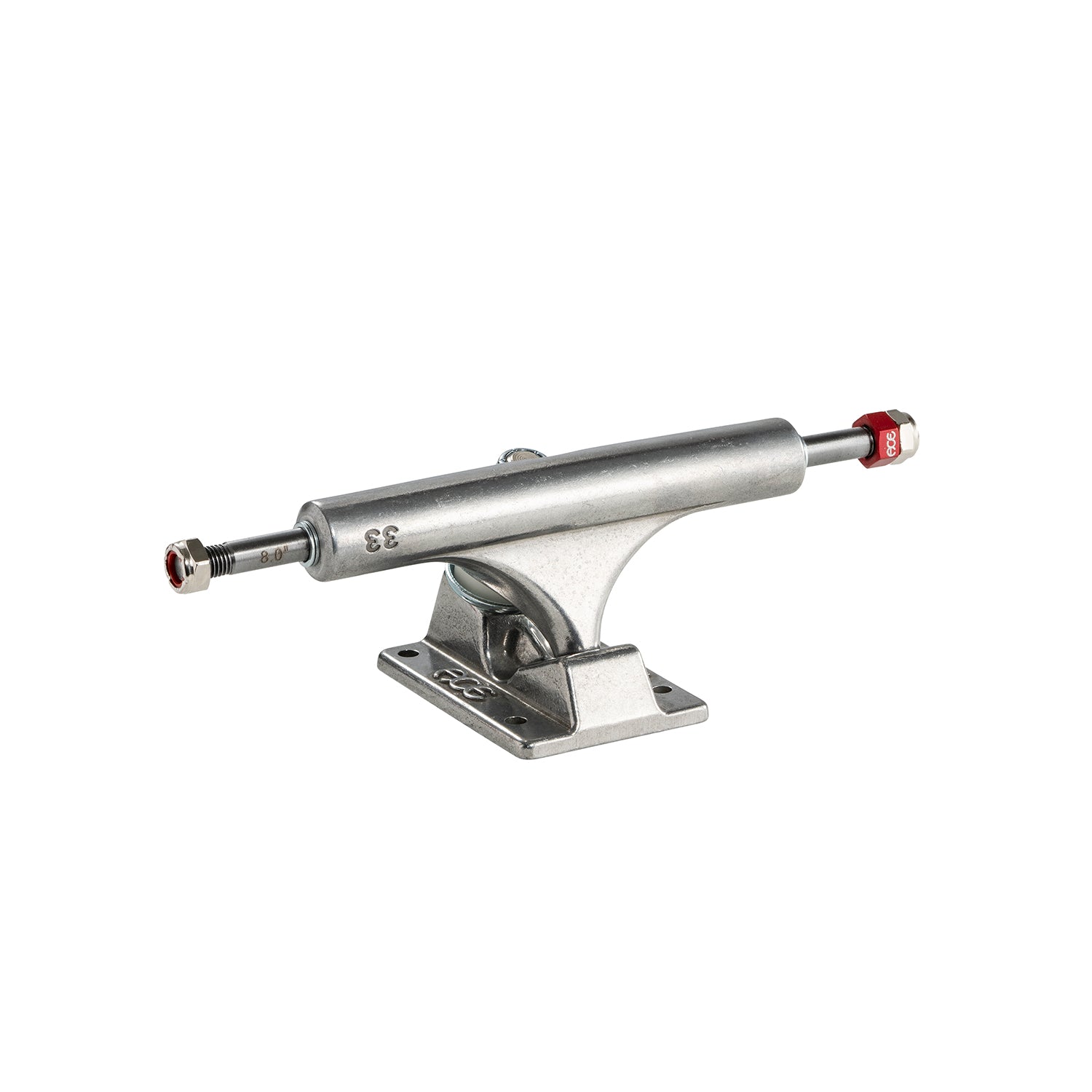

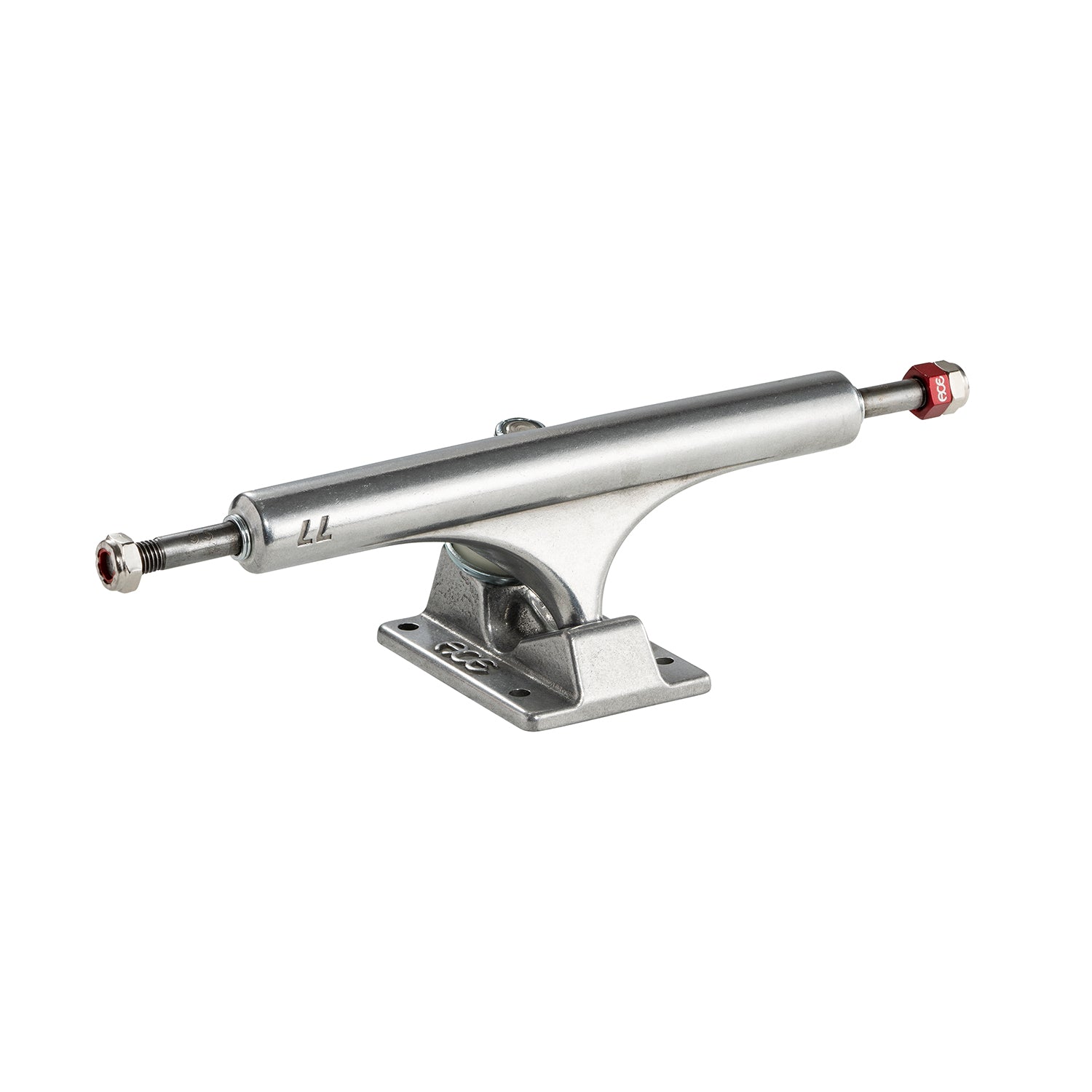

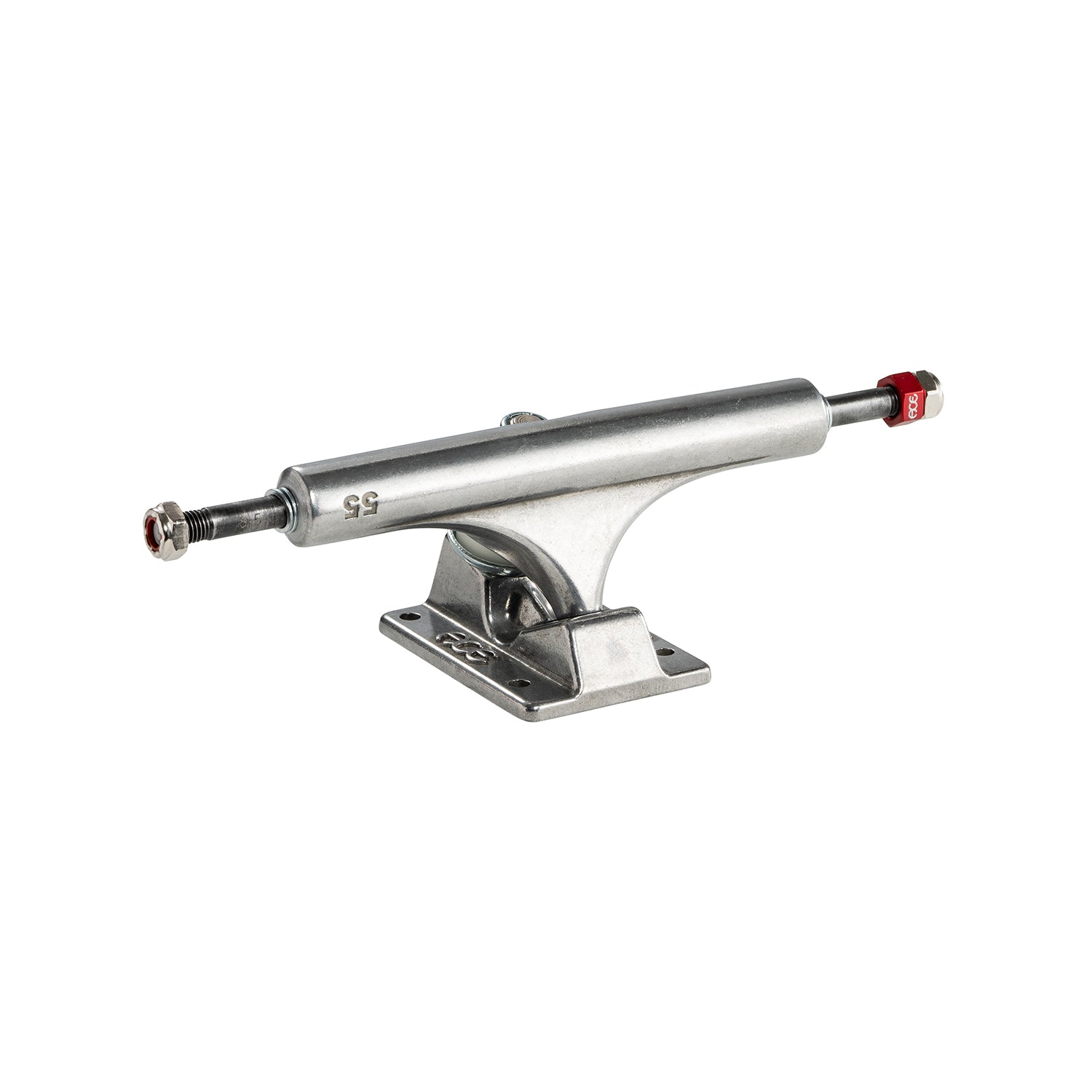

Ace Trucks - AF1 Trucks Polished
ACE TRUCKS ARE SOLD IN PAIRS.
= PRICE IS FOR 2 ACE TRUCKS (ONE PAIR).
The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
• Hanger width: 5.6” (143mm)
• Truck height: 2.1” (53mm)
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
Size Chart:
22 - 7.75" Axle - Fits 7.25" - 8.0"
33 - 8.0" Axle - Fits 8" - 8.25"
44 - 8.25" Axle - Fits 8.25" - 8.5"
55 - 8.5" Axle - Fits 8.5" - 8.75"
60 - 8.75" Axle - Fits 8.75" - 9.0"
66 - 9.0" Axle - Fits 9.0" - 9.25"
77 - 9.25" Axle - Fits 9.25" - 9.5"
80 - 10.0" Axle - Fits 9.5" - ABOVE
